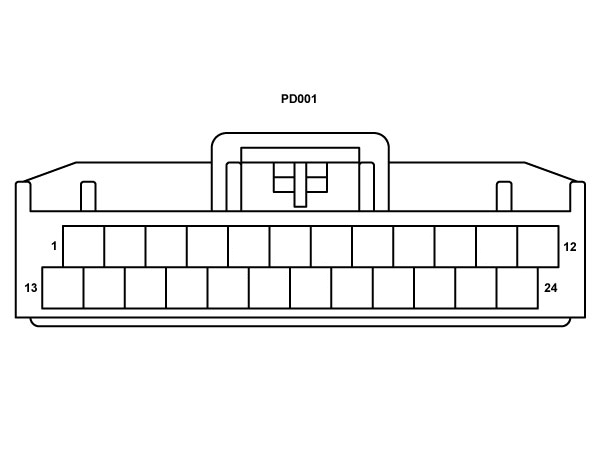

1
| Window switch ambient LED illumination V+ |
2
| Window switch resistor ladder 2 |
3
| Window switch illumination V+ |
4
| Window switch internal door release B |
5
| Door LIN |
6
| - |
7
| - |
8
| - |
9
| - |
10
| - |
11
| - |
12
| External door ground |
13
| Window switch supply |
14
| Window switch resistor ladder 1 |
15
| Window switch ground |
16
| Window switch internal door release A |
17
| Heating Ventilation Air Conditioning Control (HVAC) +12V |
18
| Heating Ventilation Air Conditioning Control (HVAC) ground |
19
| - |
20
| - |
21
| - |
22
| - |
23
| External door unlock |
24
| - |
