Pin

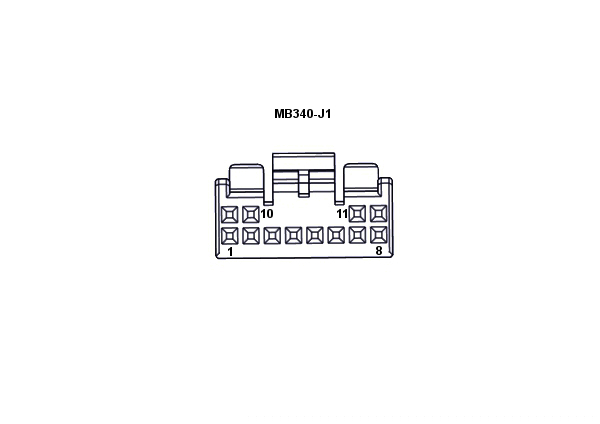

Electrical / Infotainment / Displays / DA-WD-M02015-01 - Display ECU S1

Pos No
Name
1
Battery Supply
2
Spare
3
Battery Ground
4
Spare
5
Private Control BUS -L
6
Private Control BUS -H
7
Spare
8
Spare
9
Spare
10
Spare
11
Centre Display On
12
Safe Shutdown


   Note
