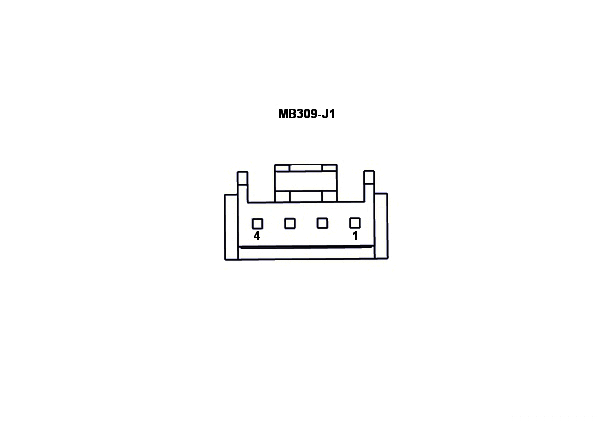

Pin
Electrical / Infotainment / ADI ECU System / DA-WD-M02104-01 - Infotainment ECU S1

Pos No
Name
1
+12V Supply (LIN)
2
LIN
3
Ground
4
Spare


   Note
