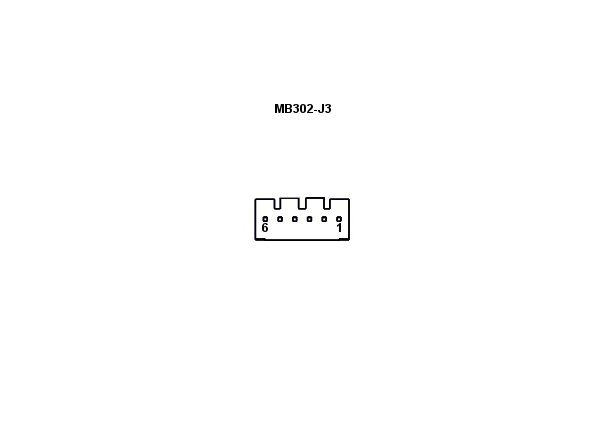

Pin
Electrical / Infotainment / ADI ECU System / DA-WD-M02104-01 - Infotainment ECU S1

Pos No
Name
1
Microphone1N (Input for Speech)
2
Microphone1P (Input for Speech)
3
Microphone2N (Engine Sound Electric City)
4
Microphone2P (Engine Sound Electric City)
5
Spare
6
Spare


   Note
