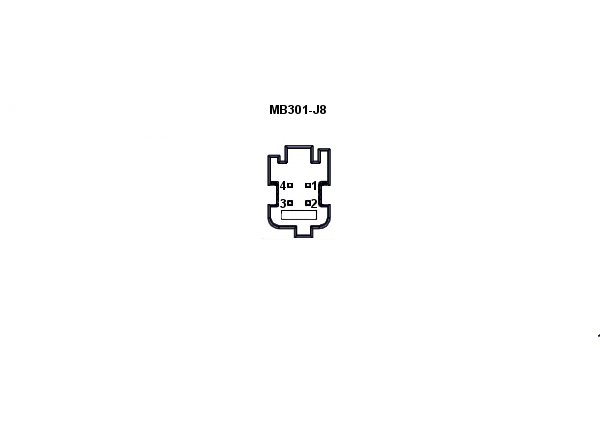

Pin
Electrical / Infotainment / Displays / DA-WD-M02015-02 - Display ECU S2

Pos No
Name
1
Reg Cam
2
Negative Signal
3
Positive Signal
4
Ground
SCR
Ground (Case)


   Note
