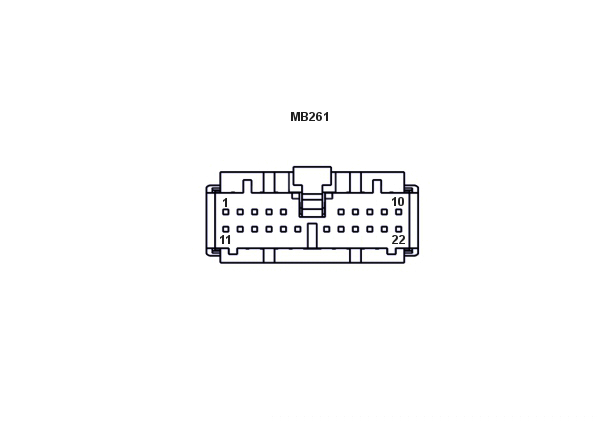

Pin
Electrical / Infotainment / ADI ECU System / DA-WD-M02104-02 - Infotainment ECU S2

Pos No
Name
1
CAN High
2
Audio Input Left
3
Audio Input Left
4
Audio Input Right
5
Audio Input Left
6
Audio Input Right
7
Spare
8
Spare
9
Spare
10
Spare
11
CAN Low
12
Spare
13
Audio Input Left
14
Audio Input Left
15
Audio Input Right
16
Spare
17
Spare
18
Audio Input Right
19
Spare
20
Spare
21
Spare
22
Spare


   Note
