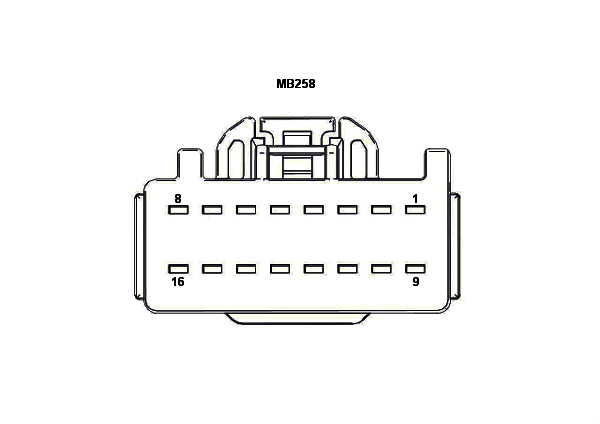

Pin
Electrical / Infotainment / Sound System / DA-WD-M02102-02 - Audio System - 12 Speaker (High Line)

Pos No
Name
1
Front Left Door Woofer CH1-
2
Front Left High CH2-
3
Front Left Mid CH3-
4
Spare
5
Rear Left High CH5-
6
Rear Left Surround CH6-
7
Front Left Door Woofer CH7-
8
Centre Mid CH8-
9
Front Left Door Woofer CH1+
10
Front Left High CH2+
11
Front Left Mid CH3+
12
Spare
13
Rear Left High CH5+
14
Rear Left Surround CH6+
15
Front Left Door Woofer CH7+
16
Centre Mid CH8+


   Note
