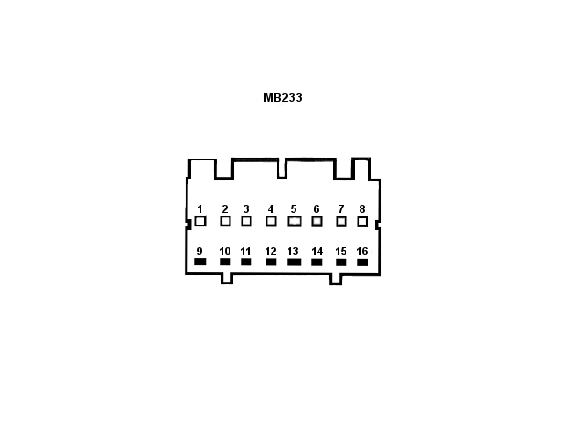

Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-01 - Switch Control Unit Gateway - SCUG

Pos No
Name
1
Spare
2
Spare
3
Spare
4
Spare
5
Output Reach Motor A
6
Spare
7
Spare
8
Spare
9
Spare
13
Spare
14
Spare
15
Spare
16
Output Reach Motor B


   Note
