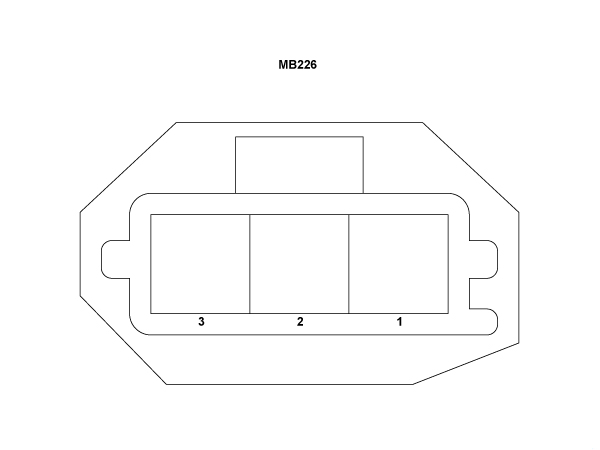

Pin
Electrical / Wiring Harness / Power and Ground Distribution / DA-WD-M00101-08 GS - Rear Left Fenders S2

Pos No
Name
1
Reverse light
2
Ground
3
Rear fog light


   Note
