Pin

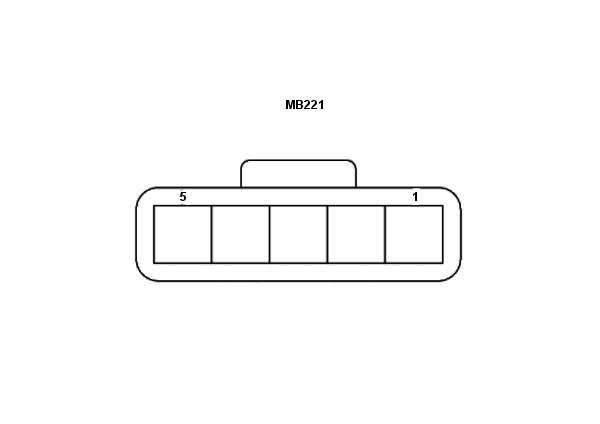

Electrical / Infotainment / ADI ECU System / DA-WD-M02104-01 - Infotainment ECU S1

Pos No
Name
1
Batt
2
Ground
3
LIN
4
Spare
5
Spare


   Note
