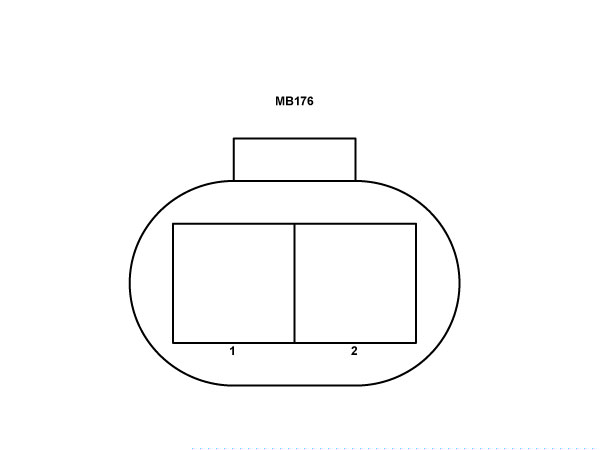

Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-02 - Heating Ventilation Air Conditioning Controller - HVAC

Pos No
Name
1
HVAC External Air Temperature Sensor Input
2
Sensor Return


   Note
