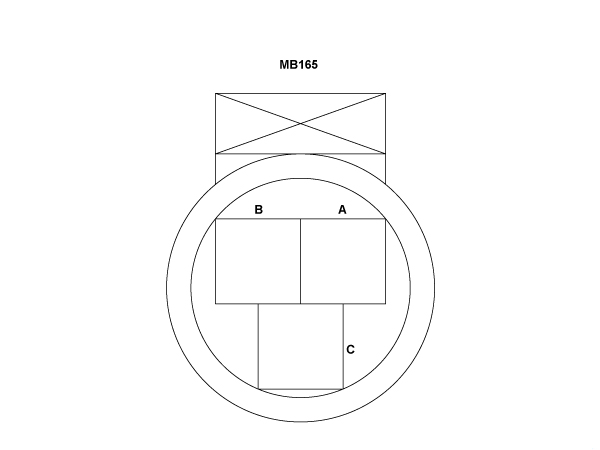

Pin
Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-02 - Heating Ventilation Air Conditioning Controller - HVAC

Pos No
Name
A
Ground
B
+ 5V supply
C
Power Input


   Note
