Pin

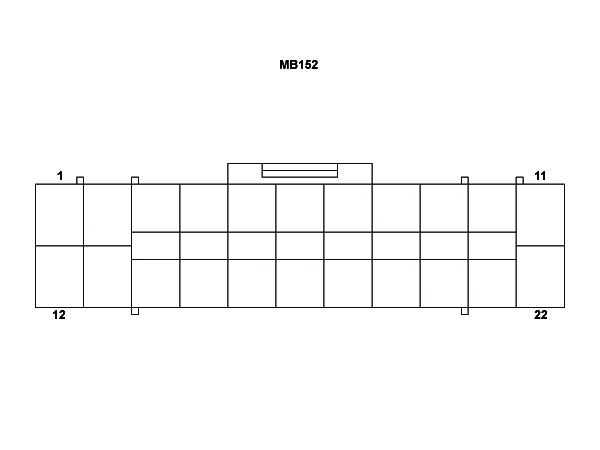

Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-02 - Heating Ventilation Air Conditioning Controller - HVAC

Pos No
Name
1
Ground Sensor Supply
2
Spare
3
HVAC Evaporator Temperature Sensor Input
4
HVAC Cabin Temperature Sensor Input
5
Spare
6
HVAC Outside Air Temperature Sensor Input
7
Spare
8
Spare
9
Spare
10
Spare
11
5V Sensor Supply B Output
12
Spare
13
Spare
14
Spare
15
Spare
16
Spare
17
Spare
18
HVAC Refrigerant Pressure Sensor Input
19
Spare
20
Spare
21
Spare
 Ground Sensor Supply


   Note
