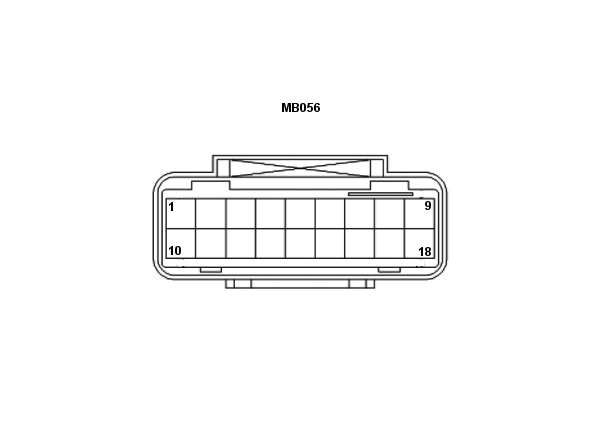

1
| Key Power Supply |
2
| Spare |
3
| LIN 1 Sensor |
4
| +12V Out-Front Sensor Supply |
5
| +12V Out-Rear Sensor Supply |
6
| Output1 Front Speak Positive |
7
| Output1 Front Speak Negative |
8
| Output2 Rear Speak Positive |
9
| Output2 Rear Speak Negative |
10
| Ground |
11
| Body CAN Low |
12
| Body CAN High |
13
| Spare |
14
| PDC Activation |
15
| Spare |
16
| Spare |
17
| Spare |
18
| Tell Tale LED |
