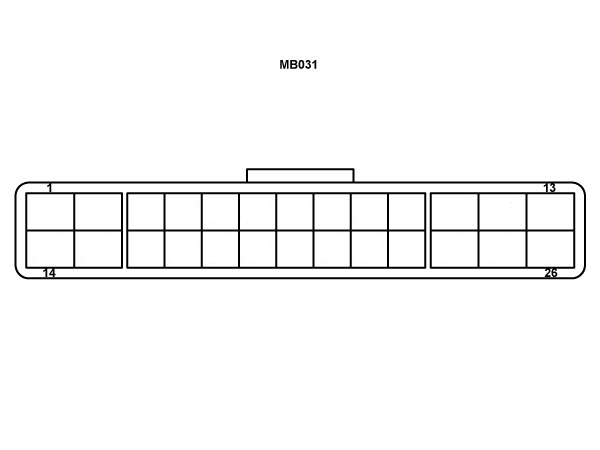

Pin
Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-01 - Switch Control Unit Gateway - SCUG

Pos No
Name
1
Spare
2
Power ground
3
Lamp Autolevelling Actuator Supply
4
Output Rake Motor A
5
Spare
6
Spare
7
Output Rake Motor B
8
Spare
9
Spare
10
Lower Console Control Panel Power Supply
11
Spare
12
Spare
13
Spare
14
Spare
15
Spare
16
Ignition Switch Input (KL15C)
17
Spare
18
Spare
19
Spare
20
Spare
21
Spare
22
Spare
23
Spare
24
Spare
25
Spare
26
Permanent V Battery Supply - Switch Control Unit Gateway(SCUG) (KL30)


   Note
