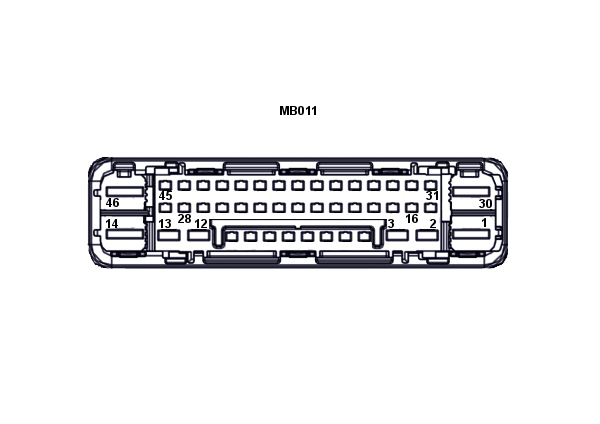

Electrical / Wiring Harness / Power and Ground Distribution / DA-WD-M00101-05 - GS Front Stowage S2

Pos No
Name
1
Pump Supply
2
MRP/EPB RH +VE
3
MRP/EPB RH -VE
4
12V return
5
Ground
6
BLS HI Output
7
WSS - FL
8
12V supply
9

10

11
CAN High
12
MLM/EPB LH -VE
13
MLP/EPB LH +VE
14
Pump Groung
15
EPB Signal SW1
16
-
17

18

19
CAN1 M
20
12V supply
21
WSP - FR
22
WSP - RR
23
WSS - RL
24
WSS - FL
25
CAN Low
26
WSS - FR
27
Supply Voltage
28

29
Ground
30
VR ECU Supply
31
12V supply
32
EPB Signal SW4
33

34
BLS Low Output
35

36

37
WSS - RR
38

39
WSP - RL
40

41

42

43

44

45
Output Voltage
46
ECU Ground


   Note
