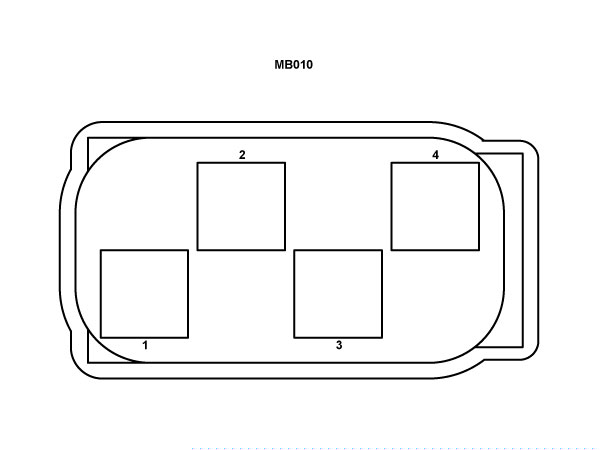

Pin
Electrical / Wiring Harness / Power and Ground Distribution / DA-WD-M00101-02 - GS B-Pillars S1

Pos No
Name
1
Ground
2
CAN low
3
CAN high
4
Power


   Note
