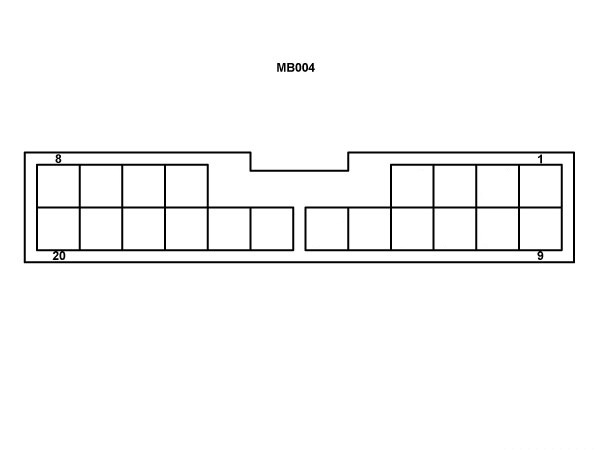

Electrical / Electrical Systems / Steering Column Module / DA-WD-M00208-01 - MRM

Pos No
Name
1
Windscreen wiper motor park position
2
-
3
Windscreen washer fluid pump
4
-
5
Cooling water low level
6
Brake fluid level
7
-
8
Body LIN 1 data
9
-
10
Headlight washer fluid pump
11
-
12
-
13
Rear fog status
14
Heated window relay drive
15
Body CAN high
16
Body CAN BUS low
17
Brake pad wear 1
18
Brake pad wear 2
19
Brake pad wear 3
20
Brake pad wear 4


   Note
