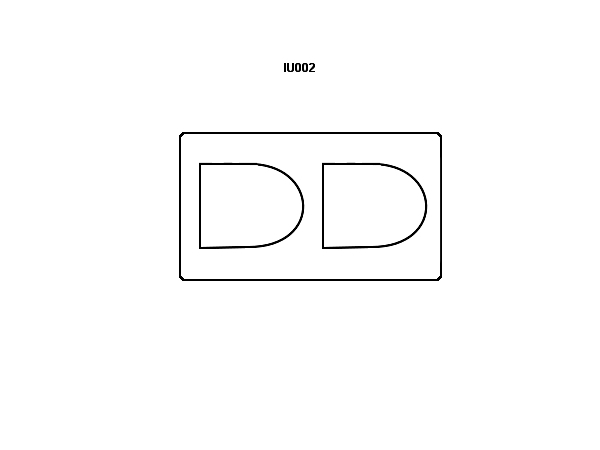

Pin
Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-02 - Heating Ventilation Air Conditioning Controller - HVAC

Pos No
Name
1
Temperatur Sensor Input
2
Ground


   Note
