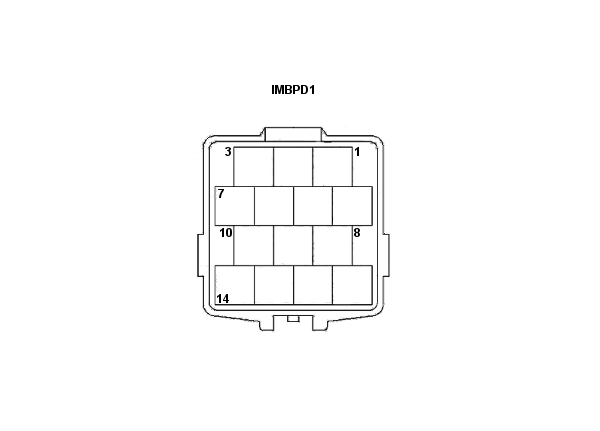

Pin
Electrical / Infotainment / Sound System / DA-WD-M02102-01 - Audio System - 4 Speaker (Low Line)

Pos No
Name
1
Side door pressure SS passenger +
2
Woofer -
3
Woofer +
4
-
5
Side door pressure SS passenger -
6
Body CAN high
7
Body CAN low
8
Door commence challenge
9
External door unlock
10
Touch sensor external doors release
11
Mid range +
12
Mid range -
13
Power Supply
14
GND


   Note
