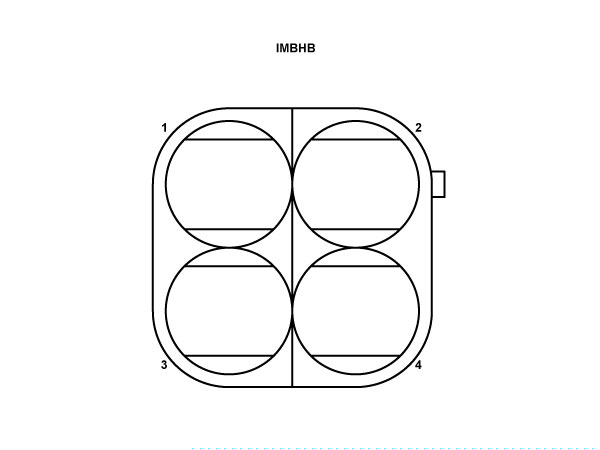

Pin
Electrical / Electrical Systems / Network ECUs / DA-WD-M00207-02 - Heating Ventilation Air Conditioning Controller - HVAC

Pos No
Name
1
Ground
2
VBat
3
Blower Signal
4
KL15C


   Note
