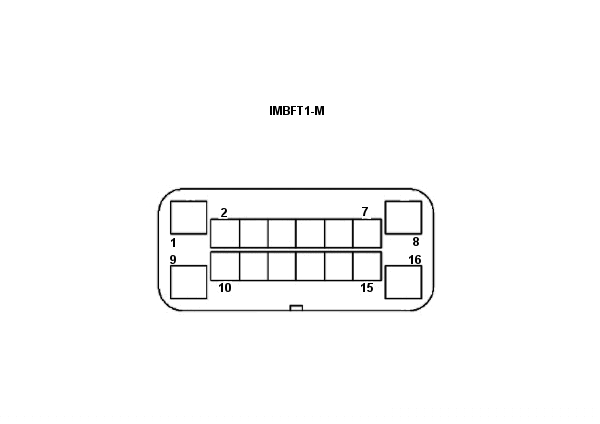

Pin
Electrical / Infotainment / Displays / DA-WD-M02015-01 - Display ECU S1

Pos No
Name
1
Fuel PEM Controller 1 - Input PWM
2
Sensor Ground
3
DMTL Pump
4
Fuel Level Signal
5
Spare
6
Spare
7
Reserve Output Low Side Drive
8
Spare
9
Spare
10
Fuel Tank Pump
11
Fuel Pump PWM 1
12
Purge Valve
13
Spare
14
Electrical Exhaust Valve (LH Bank)
15
Fuel Level Ground
16
Pump Ground


   Note
