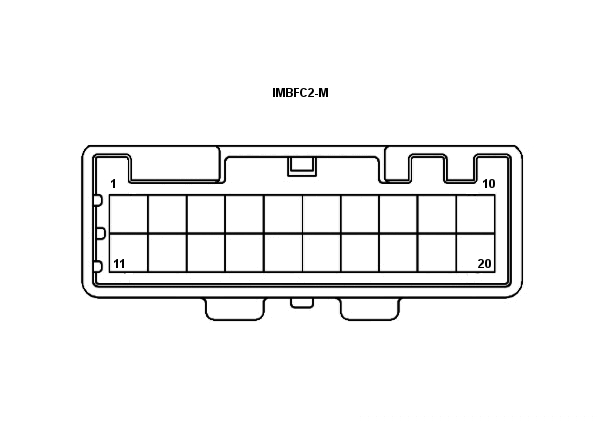

Pin
Electrical / Infotainment / Displays / DA-WD-M02015-04 - Tell Tale Displays / Driver Display

Pos No
Name
1
Pin1
2
Pin2
3
Ground
4
-
5
Motor Drive B
6
Hall Ground
7
Resistor ladder 2
8
Spare
9
+V Supply
10
Ground
11
Footwell Illumination
12
Pin12
13
Motor Drive A
14
Pin14
15
Paddle Switch Down
16
Hall Signal Out
17
Private Vehicle BUS High
18
Private Vehicle BUS Low
19
A-Pillar Tweeter Right - Negative
20
A-Pillar Tweeter Right - Positive


   Note
