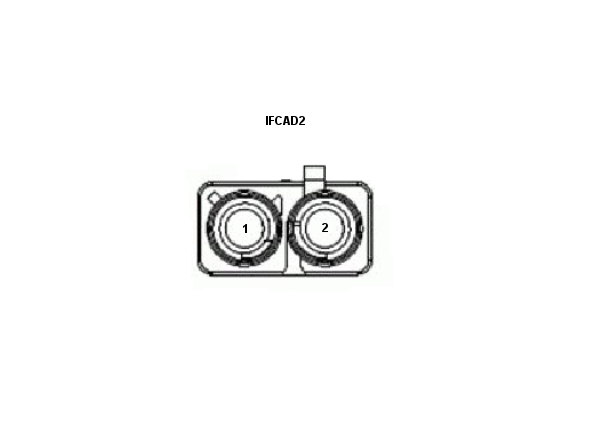

Pin
Electrical / Infotainment / ADI ECU System / DA-WD-M02104-02 - Infotainment ECU S2

Pos No
Name
1
Tuner 2 RF
2
Tuner 2 RF Ground
3
DAB RF
4
DAB RF Ground


   Note
