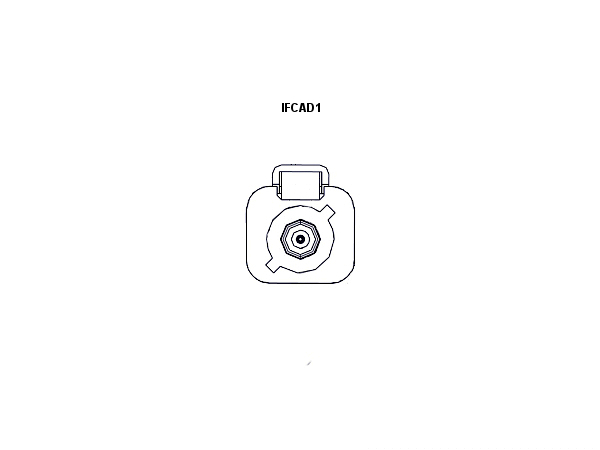

Pin
Electrical / Infotainment / ADI ECU System / DA-WD-M02104-02 - Infotainment ECU S2

Pos No
Name
1
AM/FM Signal
2
Ground


   Note
