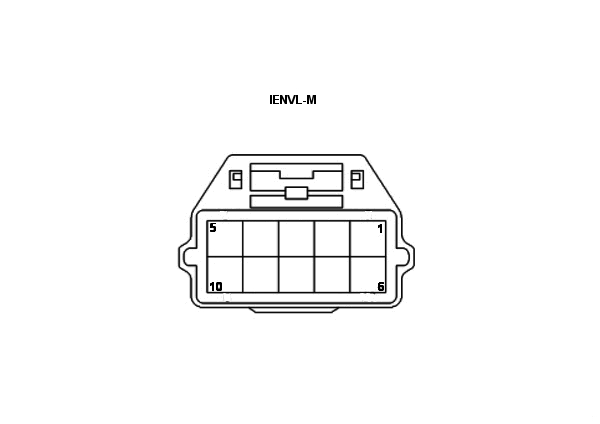

Powertrain / Engine / Engine Control Unit / DA-WD-F00102-03 - Engine Control Module - EN S1

Pos No
Name
1
Oil Pressure Switch Output
2
Knock sensor 4A
3
Knock sensor 3A
4
Knock sensor 3B
5
Knock sensor 4B
6
Coolant Temperature Sensor 1 Input
7
Sensor Ground
8
Spare
9
Spare
10
Spare
