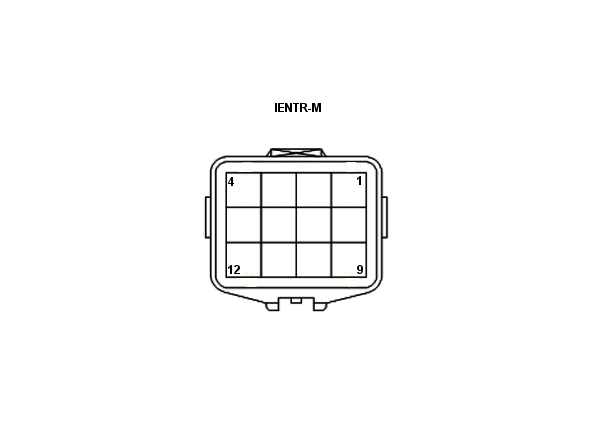

Pin
Powertrain / Transmission / Powertrain and Chassis Control Unit / DA-WD-G00102-01 - Transmission Control Unit S2

Pos No
Name
1
Spare
2
+5V Wastegate LH Sensor
3
Wastegate LH Position Sensor
4
Ground Wastegate - LH Position Sensor
5

6

7
+5V Wastegate RH Sensor
8
Wastegate RH Position Sensor
9
Ground Wastegate - RH Sensor Return
10

11

12



   Note
