Pin

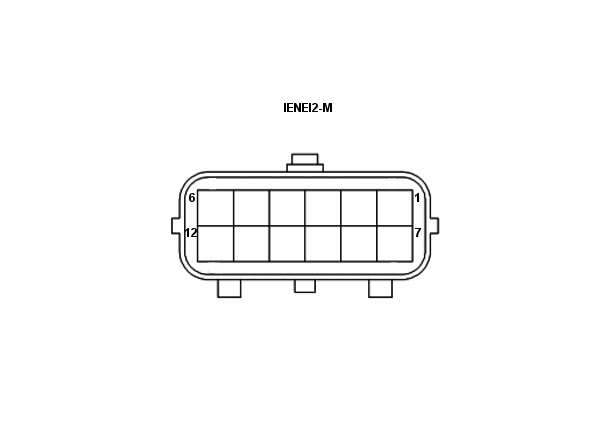

Powertrain / Engine / Engine Control Unit / DA-WD-F00102-02 - Engine Control Module - MB S2

Pos No
Name
1
Relay Output (KL87)
2
Fuel injector drive 5
3
Fuel injector drive 6
4
Fuel injector drive 7
5
Fuel injector drive 8
6
Left bank throttle ground
7
Left bank throttle +
8
Left bank throttle position2
9
Left bank throttle position1
10
Left bank throttle -
11
Left bank throttle supply (+5V)
12
Spare


   Note
