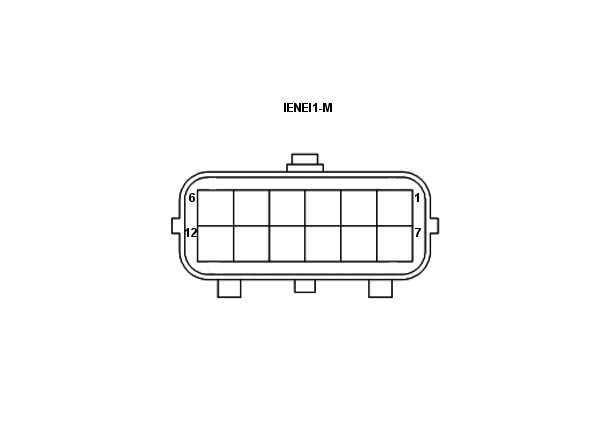

Pin
Powertrain / Engine / Engine Control Unit / DA-WD-F00102-02 - Engine Control Module - MB S2

Pos No
Name
1
Relay Output (KL87)
2
Fuel injector drive 1
3
Fuel injector drive 2
4
Fuel injector drive 3
5
Fuel injector drive 4
6
Right bank throttle ground
7
Right bank throttle +
8
Right bank throttle position2
9
Right bank throttle position1
10
Right bank throttle -
11
Right bank throttle supply (+5V)
12
Spare


   Note
