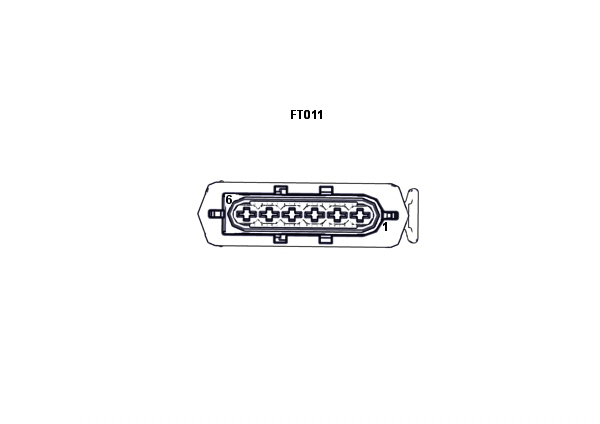

Electrical / Wiring Harness / Power and Ground Distribution / DA-WD-M00101-07 - GS Rear Left Fenders S1

Pos No
Name
1
U
2
V
3
W
4
Ground
5
V Supply
6
Signal


   Note
