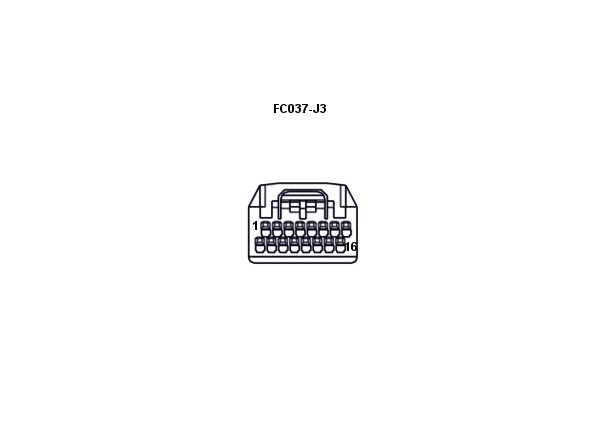

Pin
Electrical / Infotainment / Displays / DA-WD-M02015-04 - Tell Tale Displays / Driver Display

Pos No
Name
1
Spare
2
Seat Unfastened - LED
3
ABS System Failure - LED
4
Spare
5
Dip Beam - LED
6
LH Indicator - LED
7
Spare
8
Power On - LH
9
SDR System Failure - LED
10
Low Oil Pressure - LED
11
Rear Fog Lamp - LED
12
Main Beam - LED
13
Dynamic Stability Control Off - LED
14
Dynamic Stability Control Failure - LED
15
Ground Det Left
16
Ground Left


   Note
