          DA-WD-M00303-01 - Horns
      Infotainment
    Interior
  Customer Service

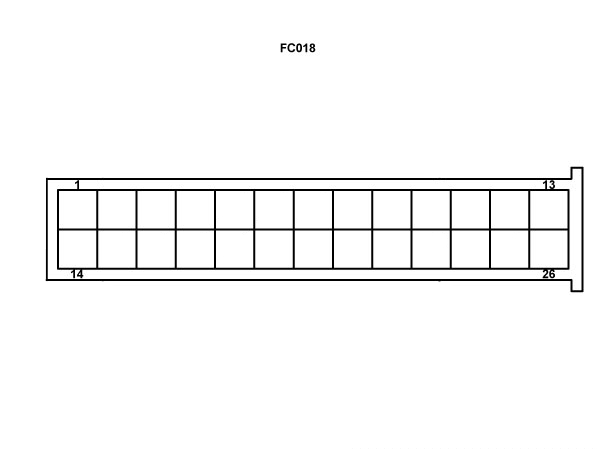

Pin
Electrical / Electrical Hardware / Horn / DA-WD-M00303-01 - Horns

Pos No
Name
1
Airbag Secondary +
2
Spare
3
Horn Ground
4
Horn
5
Spare
6
Spare
7
Spare
8
SAS CAN Low
9
SAS CAN High
10
Stalk Power
11
Stalk LIN
12
Paddle Switch up
13
Airbag Primary +
14
Airbag Secondary -
15
Spare
16
Spare
17
Spare
18
Spare
19
Paddle Switch Down 1
20
Paddle Ground
21
SAS Power
22
SAS Ground
23
Spare
24
Stalk Switch Ground
25
Spare
26
Airbag Primary -
