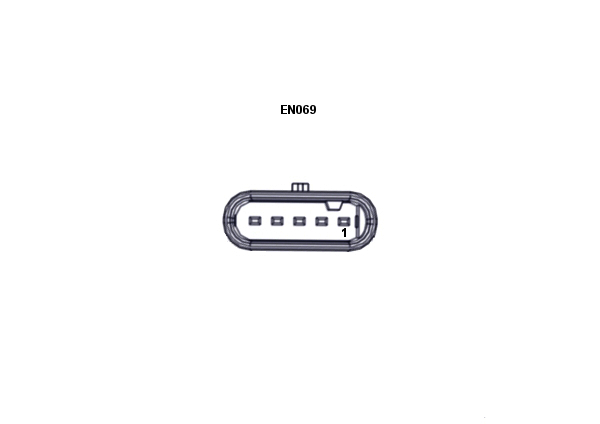

Pin
Powertrain / Transmission / Powertrain and Chassis Control Unit / DA-WD-G00102-01 - Transmission Control Unit S2

Pos No
Name
1
DC Motor 1
2
Sensor VDD
3
Sensor Ground
4
Sensor Output
5
DC Motor 2


   Note
