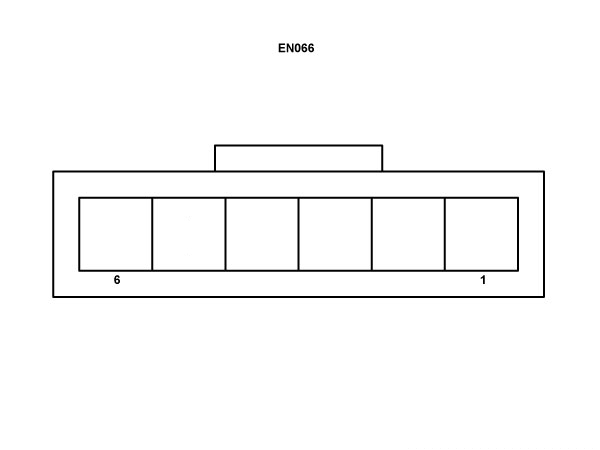

Powertrain / Engine / Engine Control Unit / DA-WD-F00102-03 - Engine Control Module - EN S1

Pos No
Name
1
Sensor +5V
2
Sensor ground
3
Motor +
4
Motor -
5
Spare
6
Sensor Output


   Note
