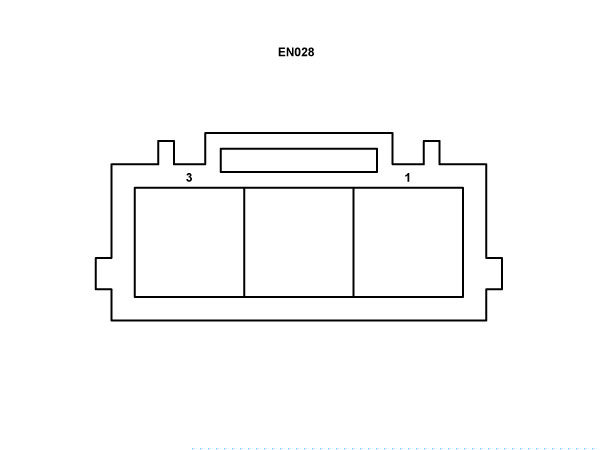

Electrical / Wiring Harness / Power and Ground Distribution / DA-WD-M00101-09 - GS Rear Right Fenders

Pos No
Name
1
ECU Signal
2
ECU Ground
3
UBatt


   Note
