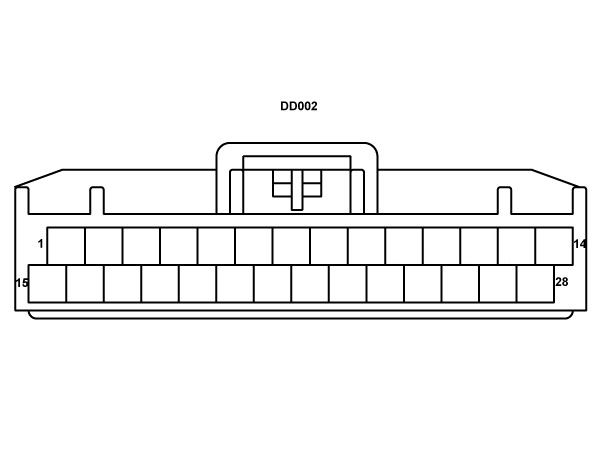

Pin
Electrical / Electrical Systems / Keys and Passive Entry System / DA-WD-M00206-01 - Keyless Go System

Pos No
Name
1
CAN high
2
Hall sensor power
3
Hall sensor ground
4
Mirror unflod
5
Mirror X/Y bridge common
6
Mirror sense +5V
7
Mirror X-axis sense
8
Spare
9
Door commence challenge
10
Spare
11
Spare
12
Spare
13
Spare
14
Passive entry coil B
15
CAN low
16
hall sensor signal
17
Mirror fold
18
Mirror motor X-axis left
19
Mirror motor Y-axis up/down
20
Mirror motor Y-axis sense
21
Mirror sense ground
22
Spare
23
Spare
24
Mirror heat V+
25
Mirror heat ground + side repeat
26
Spare
27
Passive entry shield
28
Passive entry coil 1


   Note
