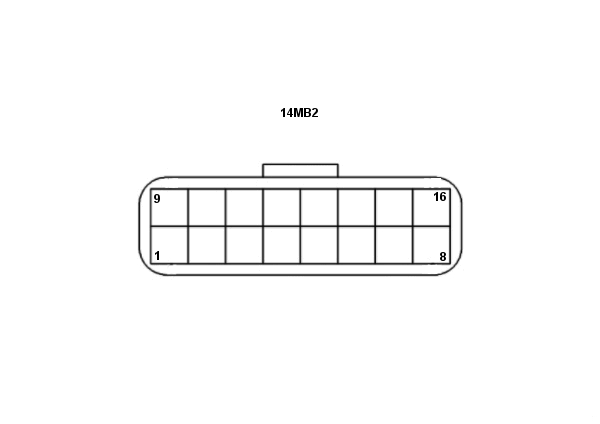

Chassis / Suspension - Systems / Suspension Fluid Systems / DA-WD-B00301-02 - Chassis Control Unit S2

Pos No
Name
1
Sensor Voltage Supply
2
Sensor Ground
3
APMU Pressure B
4
APMU Pressure A
5
APMU Noselift Pressure
6
APMU Pressure C
7
Valve C High
8
Valve C Low
9
Valve B High
10
Valve B Low
11
Noselift Valve High
12
Noselift Valve Low
13
Valve A - Restrictor High
14
Valve A - Restrictor Low
15
Sensor Ground Noselift


   Note
